Model/Series: AA-8100
BC Part #: AA-8100
Base Price: $4,500.00
Price: $4,500.00
Included Items
  • NIST Traceable Calibration Certificate with Data (12 Points)
    Battery Eliminator - Universal (BC20-21112 )
    Sample Line (BC20-43000)
    Ventilation Adapter (BC20-43019)
    Scavenger Tubing (BC20-43021)
  • Communication Cable (USB-A to USB-B)
    Carrying Case
Quantity:


Description  more details

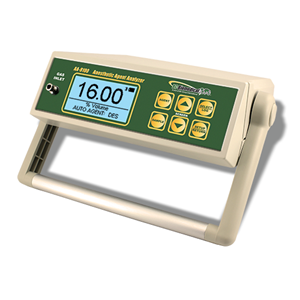

The AA-8100 is an enhanced version of the AA-8000, adding Auto Agent ID, Bluetooth, iOS and Android Apps, CO2 Gas Analysis and 100 DUT Tags - downloadable from a PC, tablet or smartphone. It was designed to meet the demand for a more advanced, small, easy to use unit with high reliability and accuracy. Utilizing proprietary state-of-the-art digital NDIR (Non-Dispersive Infrared) Technology it provides a cost effective, high function, microprocessor-based analyzer that is simple to operate while maintaining high performance and accuracy.

The unit’s flexible design, portable size and Bluetooth smart device interface make it the ideal service tool for anesthesia service applications in hospitals and surgical centers. It has a slanted display and adjustable handle/stand to allow for ease of viewing. The internal rechargeable Lithium battery provides for hours of continuous operation.


Auto Agent ID or Manual One Button selection of the Agent to be analyzed coupled with One Button control over the sampling pump make the unit simple and quick to use. No complex menus and key combinations are required.


The internal data logger combined with the internal clock allows for the storage of up to 1000 time and date stamped readings, that can be downloaded to a computer using the USB interface or smart device via Bluetooth. The AA-8100 may be operated remotely via USB or Bluetooth.


Features:

• Auto Agent ID
• Bluetooth
• iOS and Android Apps myBC_Mobile
• 100 Downloadable DUT Tag Fields
• State-of-the-art NDIR (Non-Dispersive Infrared) Technology
• Measures 4 Anesthetic Agent Gases:
     • Sevoflurane, Isoflurane, Desflurane, Halothane
• Measures CO2
• Small, Portable unit with adjustable Handle/Stand
• Large Graphical Display with Backlight
• User Friendly Interface:
     • One Button or Auto Agent Select
     • One Button Sample (Pump) Control
• Auto compensation for Temperature and Barometric Pressure
• Built in Sampling Pump
• Gas Flow Sampling at 200 ml/min
• Manual, Automatic & Remote Operation
• Internal Data Logging with Date, Time and DUT Tag - 1000 Samples
• Rechargeable Battery
• USB Computer Interface
• Field Upgradeable - Flash Memory
• Fast warmup time (45 seconds)
• Comes with NIST Traceable Calibration Certificate with Data (12 Points)
• Service Tool for anesthesia service application (NOT FOR CLINICAL USE)
• Made in USA

Anesthetic Agent Testing using the BC Biomedical AA-8000


Data Sheet


User Manual


► Comparison Chart


Software

► Companion Software
