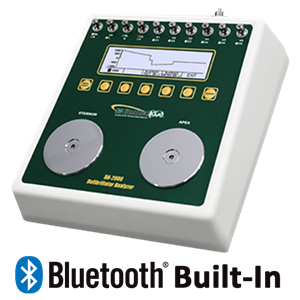

The DA-2006 Series is a microprocessor-based instrument that is used in the testing of defibrillators. It measures the energy output and provides information about the defibrillation pulse. It is used on manual, semi-automatic and automatic defibrillators with monophasic or biphasic outputs. The DA-2006P model also provides a Transcutaneous Pacemaker analysis function. This measures and displays pacer pulse information as well as performing refractory period, sensitivity and immunity testing.All models have a built-in 50 ohm human body simulation load as well as 12 lead ECG with arrhythmias and performance waveforms. Additionally, they have a Centronics printer port, a serial port, oscilloscope output, high-level ECG output and provision for a battery eliminator. The DA-2006 Series makes viewing and selecting the desired waveforms and test data quick and intuitive, with all operational information being available on the 240 by 64 pixel graphic display.
NOTE: This instrument is intended for use by trained service technicians.
• Graphic display • Display multiple parameters and scroll through options• On screen viewing of defibrillator and pacemaker waveforms• Monophasic and biphasic compatible• 5000 V, 1000 joule capacity• High and low ranges• Cardioversion delay measurement• Charge time measurement• Waveform storage and playback• 10 universal patient lead connectors• 25 pin connector for centronics printer• 9 volt battery power• Low battery indicator• Available battery eliminator• Display backlight• Full remote operation via RS-232• Flash programmable for upgrades• Auto sequence testing
► Data Sheet ► Product Manual
