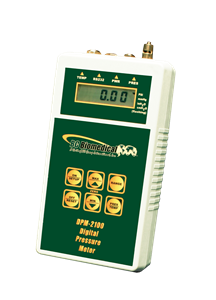

Model/Series: DPM-2100
BC Part #: DPM-2100
Base Price: $1,045.00
Price: $1,045.00
Carrying Case
Universal Pressure Adapter Kit
Probes
Quantity:


Description  more details

The DPM-2000 Series is a microprocessor-based Digital Pressure Meter family. They measure both gas and liquid pressures and provide multiple engineering unit displays for the results. The DPM-2100 has all the features of the DPM-2001 Plus and adds temperature measurement.



• YSI 700 temperature probe interface
• 0.0-100.0 C / 32.0-212.0 F temperature range
• 0.5% fs accuracy (temperature)
• Min/Max temperature value storage
• Min/Max pressure value storage
• RS-232 Serial Communications
• -13.50 to 100.00 psi range
• 0.1% fs accuracy (pressure)
• Pressure scales include psi, inH2O, cmH2O, and mmHg
• Digital calibration – no pots to turn
• 5 digit lcd plus scale indication
• Battery life display (0 to 100%)
• Programmable digital filter
• LCD contrast is software adjustable
• 16 bit pressure measurement
• Digital zero adjust
