Model/Series: ESU-2300
BC Part #: ESU-2300
Base Price: $4,770.00
Price: $4,770.00
Power Cord:
Included Items:
  • ESU-2300 Accessory Kit - BC20-00125
    Power Supply - Universal 100-240V - BC20-21105
    Comm Cable - USB - BC20-41352
    Comm Cable - RS232 - BC20-41341
    NIST Traceable Calibration Certificate
    User Manual
Quantity:


Description  more details

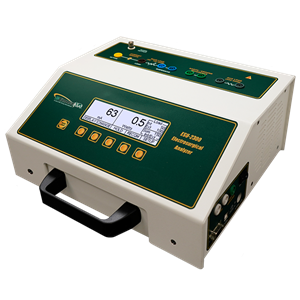

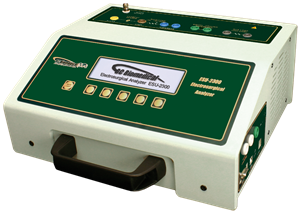

The ESU-2300 is an Electrosurgical Analyzer. The “measurement engine” of the ESU-2300 is a specially-engineered true-RMS RF ammeter and wattmeter, designed to measure the complex RF waveforms produced by electrosurgical generators. The ESU-2300 has been designed to comply with electrosurgical manufacturer industry standard current sensing technology and utilizes an internal precision RF Current Transformer. The analyzer utilizes a precision internal test load resistor network. The ESU-2300 is intended to be routinely used to measure the various parameters relating to the testing and performance validation of electrosurgical generators.  DFA® Technology allows the ESU-2300 to aggressively digitize the complex electrosurgical generator waveform, analyze its components and provide accurate and stable results. It may be used as a stand-alone meter or in conjunction with a PC utilizing the optional software.



• True RMS readings using patent pending DFA® technology
• Industry standard current sensing technology
• mV, mV peak, crest factor and power (wattage) ranges
• RF current (mA) and power (watts) can be displayed
• Internal precision load resistor network: 50 W to 750 W ohms in 50 W increments External load resistor capability – uses the external resistor value as a discrete value or add it to any internal load resistor value
• 2.5% of reading accuracy on RF current (mA)
5% of reading accuracy on RF power (watts)
• Internal load resistor network is cooled with temperature and power controlled cooling fan
• Uses an internal 0.1:1 ratio precision RF current transformer
• Independent CQM (REM/ARM) resistor network: 1 W to 500 W in 1 W increments
• RF leakage measurements through 200 W test load
• Internal rechargeable battery allows operation independent of line power
• Large graphics display with cursor selection of options and setup of parameters
• Digital data output via USB
• Remote capabilities using RS-232 and USB
• PC based interface program optional
• Digital calibration – no pots to turn
• Selectable display options
• Tactile keys with audio feedback



Data Sheet



Manual





Flash Programmer

ItemBC Part #Product NamePriceAction
ESU-2300 - Accessory Kit - (Replacement) BC20-00125 ESU-2300 - Accessory Kit - (Replacement) $475.00 + Add to Cart
Comm Cable - RS-232 - DB-9 (M) to DB-9 (F) (DA/ESU/SA) BC20-41341 Comm Cable - RS-232 - DB-9 (M) to DB-9 (F) (DA/ESU/SA) $116.00 + Add to Cart
Comm Cable - USB (A) M to USB (B) M (ESU/PFC Series) BC20-41352 Comm Cable - USB (A) M to USB (B) M (ESU/PFC Series) $32.00 + Add to Cart
Banana Jack Adapter (set of 2) BC20-00240 Banana Jack Adapter (set of 2) $25.00 + Add to Cart
Power Resistor (External) - 1 Ohm, 50W, 1% BC20-00214 Power Resistor (External) - 1 Ohm, 50W, 1% $28.00 More Info
Power Resistor (External) - 10 Ohm, 50W, 1% BC20-00220 Power Resistor (External) - 10 Ohm, 50W, 1% $28.00 More Info
Power Resistor (External) - 5 Ohm, 250W, 1% BC20-00200 Power Resistor (External) - 5 Ohm, 250W, 1% $139.00 More Info
Power Resistor (External) - 10 Ohm, 250W, 1% BC20-00201 Power Resistor (External) - 10 Ohm, 250W, 1% $139.00 More Info
Power Resistor (External) - 20 Ohm, 250W, 1% BC20-00202 Power Resistor (External) - 20 Ohm, 250W, 1% $139.00 More Info
Power Resistor (External) - 50 Ohm, 250W, 1% BC20-00204 Power Resistor (External) - 50 Ohm, 250W, 1% $139.00 More Info
Power Resistor (External) - 100 Ohm, 250W, 1% BC20-00205 Power Resistor (External) - 100 Ohm, 250W, 1% $139.00 More Info
Power Resistor (External) - 125 Ohm, 250W, 1% BC20-00215 Power Resistor (External) - 125 Ohm, 250W, 1% $222.00 More Info
Power Resistor (External) - 150 Ohm, 250W, 1% BC20-00216 Power Resistor (External) - 150 Ohm, 250W, 1% $222.00 More Info
Power Resistor (External) - 200 Ohm, 250W, 1% BC20-00206 Power Resistor (External) - 200 Ohm, 250W, 1% $139.00 More Info
Power Resistor (External) - 300 Ohm, 250W, 1% BC20-00207 Power Resistor (External) - 300 Ohm, 250W, 1% $139.00 More Info
Power Resistor (External) - 400 Ohm, 250W, 1% BC20-00217 Power Resistor (External) - 400 Ohm, 250W, 1% $222.00 More Info
Power Resistor (External) - 1000 Ohm, 250W, 1% BC20-00209 Power Resistor (External) - 1000 Ohm, 250W, 1% $139.00 More Info
Power Resistor (External) - 1500 Ohm, 250W, 1% BC20-00219 Power Resistor (External) - 1500 Ohm, 250W, 1% $222.00 More Info
Power Resistor (External) - 2000 Ohm, 250W, 1% BC20-00210 Power Resistor (External) - 2000 Ohm, 250W, 1% $139.00 More Info
Power Resistor (External) - 3000 Ohm, 250W, 1% BC20-00211 Power Resistor (External) - 3000 Ohm, 250W, 1% $139.00 More Info
Power Resistor (External) - 4000 Ohm, 250W, 1% BC20-00212 Power Resistor (External) - 4000 Ohm, 250W, 1% $139.00 More Info
Power Supply - ESU-2300 - (w/o Power Cord) - (Replacement) BC20-21105 Power Supply - ESU-2300 - (w/o Power Cord) - (Replacement) $78.00 + Add to Cart
Power Cord - North America - (ESU Series)(C13) BC20-20500 Power Cord - North America - (ESU Series)(C13) $66.00 + Add to Cart
Power Cord - Japan - (ESU Series)(C13) BC20-20501 Power Cord - Japan - (ESU Series)(C13) $66.00 + Add to Cart
Power Cord - UK/Ireland - (ESU Series)(C13) BC20-20502 Power Cord - UK/Ireland - (ESU Series)(C13) $66.00 + Add to Cart
Power Cord - Schuko/Cont Europe w/Ground - (ESU Series)(C13) BC20-20503 Power Cord - Schuko/Cont Europe w/Ground - (ESU Series)(C13) $66.00 + Add to Cart
Power Cord - Argentina - (ESU Series)(C13) BC20-20505 Power Cord - Argentina - (ESU Series)(C13) $66.00 + Add to Cart
Power Cord - India/South Africa - (ESU Series)(C13) BC20-20509 Power Cord - India/South Africa - (ESU Series)(C13) $66.00 + Add to Cart
Power Cord - Switzerland - (ESU Series)(C13) BC20-20510 Power Cord - Switzerland - (ESU Series)(C13) $66.00 + Add to Cart
Power Cord - Italy - (ESU Series)(C13) BC20-20512 Power Cord - Italy - (ESU Series)(C13) $66.00 + Add to Cart
Power Cord - Australia - (ESU Series)(C13) BC20-20516 Power Cord - Australia - (ESU Series)(C13) $66.00 + Add to Cart
Power Cord - China - (ESU Series)(C13) BC20-20517 Power Cord - China - (ESU Series)(C13) $66.00 + Add to Cart
Power Cord - Danish - (ESU Series)(C13) BC20-20519 Power Cord - Danish - (ESU Series)(C13) $66.00 + Add to Cart
