Other products by BC Biomedical
Model/Series: NIBP-1030
BC Part #: NIBP-1030
Base Price: $1,995.00
Price: $1,995.00
Select Features:

Select Included Adapter:
Optional Items:


Included Items:
  • Battery Eliminator - Universal - BC20-21115
    T-Adapter (as selected above)
    NIST Traceable Calibration Certificate
    User Manual
Quantity:


Description  more details

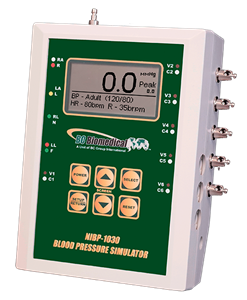

The NIBP-1030 Series are microprocessor-based, high precision, non- invasive Blood Pressure (NIBP) Simulators. The units are small, easy to use and have multiple features to fit many different applications. The NIBP-1030 offers realistic ECG waveforms that are full QRS and respiration waveforms. The NIBP-1030 offers invasive blood Pressure, temperature, arrhythmias and a Leak Rate test mode.

The graphic display not only provides multiple screens that give the pressure in mmHg, but also offers views of the plot of the overall pressure or a close-up of the BP waveform.



• Large graphic display
• Selectable options and parameter setup
• Full range manometer
• Adult, neonatal, hypertensive and hypotensive modes
• 0-500 mmHg pressure range
• +/- 1% of reading pressure accuracy
• Digital pressure envelope offset
• Optional peak pressure detect with simple reset
• SpO2 ready – compatible with MSP-2100 Module
• Digital calibration – no pots to turn
• Flash programmable
• Battery life display (0 to 100%)
• Optional rechargeable nimh batteries
• Battery eliminator
• RS232 interface

 NIBP-1020 (NIBP, ECG pace & resp) has all the basic model features plus:


• ECG output with full NSR waveform
• Sinusoidal respiration simulation
• ECG test waveforms
• Pace waveform
• Optional peak pressure detect with ECG alarm test
• ECG synchronized with blood pressure



• Backlit LCD display
• Synchronized invasive blood pressure output
• Selectable IBP sensitivity 5/40 μv/v/mmHg
• Static IBP simulation –10mmHg to 400 mmHg

• Leak rate test
• ECG arrhythmia waveforms
• ECG arrhythmia sequence
• YSI 400 and 700 Series Temperature Simulator






BC Biomedical NIBP Simulators offer the best bang for your buck in today's market. The NIBP Series is a Microprocessor based, High Precision Non- Invasive Blood Pressure (NIBP) Simulators. The units are small, easy to use and have Multiple features to fit many different applications.


This chart details the features of the NIBP series, indicating which features are included, optional or unavailable on each model.


NIBP Kits include all the adapters, all of the features for that model and the custom carrying case at a significant savings. The NIBP-1040 is only available as a kit.

BC Biomedical NIBP Series Features
 Features 1010 1020 1030 1040
 NIBP Sim Included Included Included Included
 Manometer Included Included Included Included
 SpO2 Ready Optional Optional Optional Optional
 ECG Sim N/A Included Included Included
 Patient Sim N/A N/A Included Included
 Pace  N/A Included Included Included
 Respiration N/A Included Included Included
 IBP N/A N/A Included Included
 Temp N/A N/A Included Included
 Arrhythmia N/A N/A Included Included
 Leak Detect N/A N/A Included Included
 Extended Lead N/A N/A Optional Included
 Cardiact Output N/A N/A N/A Included
 Fetal/Maternal N/A N/A N/A Included
 Internal Battery Optional Optional Optional Included
 Peak Detect Optional Optional Optional Included
 Alarm N/A Optional Optional Included




Data Sheet



► Manual



Cable Selection Guide

Available Model Comparison





Flash Programmer



ItemBC Part #Product NamePriceAction
T-Adapter - DINAMAP/Critikon (NIBP Series) BC20-40714 T-Adapter - DINAMAP/Critikon (NIBP Series) $40.00 + Add to Cart
T-Adapter - Luer (NIBP Series) BC20-40716 T-Adapter - Luer (NIBP Series) $40.00 + Add to Cart
T-Adapter - Marquette (NIBP Series) BC20-40717 T-Adapter - Marquette (NIBP Series) $40.00 + Add to Cart
T-Adapter - Quick Disconnect (NIBP Series) BC20-40715 T-Adapter - Quick Disconnect (NIBP Series) $40.00 + Add to Cart
Adapter - Bulb (NIBP Series) BC20-40608 Adapter - Bulb (NIBP Series) $40.00 + Add to Cart
Carrying Case - (Soft) - BC Biomedical NIBP BC20-30111 Carrying Case - (Soft) - BC Biomedical NIBP $52.00 + Add to Cart
NIBP Adapter Fitting Kit (11 pcs) BC20-40605 NIBP Adapter Fitting Kit (11 pcs) $95.00 + Add to Cart
Communication Cable - (Mini DIN M to DB 9 F) (DPM-2200/2300 Series Only) BC20-41337 Communication Cable - (Mini DIN M to DB 9 F) (DPM-2200/2300 Series Only) $116.00 + Add to Cart
Communication Cable - (USB to DB 9 M) BC20-41339 Communication Cable - (USB to DB 9 M) $116.00 + Add to Cart
Temperature Cable - YSI 400 - UT-1 (PS/NIBP Series) BC20-41333 Temperature Cable - YSI 400 - UT-1 (PS/NIBP Series) $95.00 + Add to Cart
Temperature Cable - YSI 700 - UT-2 (PS/NIBP Series) BC20-41334 Temperature Cable - YSI 700 - UT-2 (PS/NIBP Series) $95.00 + Add to Cart
Temperature Cable - Mindray V Series Monitor (YSI400) BC20-41366 Temperature Cable - Mindray V Series Monitor (YSI400) $95.00 + Add to Cart
IBP Cable - Burdick - DIN - 10F (DX-1) BC20-40303 IBP Cable - Burdick - DIN - 10F (DX-1) $150.00 + Add to Cart
Intrauterine Pressure Cable - TOCO-IUP - Corometrics (12M) BC20-41343 Intrauterine Pressure Cable - TOCO-IUP - Corometrics (12M) $170.00 + Add to Cart
IBP Cable - Datascope /SMEC -DIN - 6F (DS-1) BC20-40302 IBP Cable - Datascope /SMEC -DIN - 6F (DS-1) $150.00 + Add to Cart
IBP Cable - Datascope/SMEC - Mini DIN - 6F (DS-1) BC20-41308 IBP Cable - Datascope/SMEC - Mini DIN - 6F (DS-1) $150.00 + Add to Cart
IBP Cable - Fukuda Denshi - DIN - 12F (FD-2) BC20-40304 IBP Cable - Fukuda Denshi - DIN - 12F (FD-2) $150.00 + Add to Cart
IBP Cable - Fukuda Denshi - Mini DIN - 12F (FD-2) BC20-41311 IBP Cable - Fukuda Denshi - Mini DIN - 12F (FD-2) $150.00 + Add to Cart
IBP Cable - GE/Marquette (MQ-2) - DIN - 11MF (Rectangular) BC20-40307 IBP Cable - GE/Marquette (MQ-2) - DIN - 11MF (Rectangular) $150.00 + Add to Cart
IBP Cable - GE/Marquette - Mini DIN - 11M (Rectangle) BC20-41320 IBP Cable - GE/Marquette - Mini DIN - 11M (Rectangle) $150.00 + Add to Cart
IBP Cable - Philips/HP - DIN - 12F (HP-4) BC20-40310 IBP Cable - Philips/HP - DIN - 12F (HP-4) $150.00 + Add to Cart
IBP Cable - Philips/HP (5uv) - Mini DIN - 12M (HP-3) BC20-41314 IBP Cable - Philips/HP (5uv) - Mini DIN - 12M (HP-3) $150.00 + Add to Cart
IBP Cable - Kontron - DIN - 12F (KT-1) BC20-40313 IBP Cable - Kontron - DIN - 12F (KT-1) $144.00 + Add to Cart
IBP Cable - Kontron - Mini DIN - 12F (KT-1) BC20-41318 IBP Cable - Kontron - Mini DIN - 12F (KT-1) $150.00 + Add to Cart
IBP Cable - MDE - Mini DIN - 6M BC20-41322 IBP Cable - MDE - Mini DIN - 6M $150.00 + Add to Cart
IBP Cable - Mennen Medical - Mini DIN - 10M (MM-1) BC20-41323 IBP Cable - Mennen Medical - Mini DIN - 10M (MM-1) $150.00 + Add to Cart
IBP Cable - Nihon Kohden - Mini DIN - 5M (NK-1) BC20-41324 IBP Cable - Nihon Kohden - Mini DIN - 5M (NK-1) $150.00 + Add to Cart
IBP Cable - Siemens - Mini DIN - 10M (SM-1) BC20-41329 IBP Cable - Siemens - Mini DIN - 10M (SM-1) $150.00 + Add to Cart
IBP Cable - Siemens - Mini DIN - 15M (SM-3) BC20-41328 IBP Cable - Siemens - Mini DIN - 15M (SM-3) $150.00 + Add to Cart
IBP Cable - Spacelabs - Mini DIN - 5M (SL-1) BC20-41331 IBP Cable - Spacelabs - Mini DIN - 5M (SL-1) $150.00 + Add to Cart
IBP Cable - (Spacelabs/Drager/Ivy/...) - Mini DIN - 6M (TK-1) BC20-41301 IBP Cable - (Spacelabs/Drager/Ivy/...) - Mini DIN - 6M (TK-1) $150.00 + Add to Cart
IBP Cable - Unterminated - Mini DIN BC20-41340 IBP Cable - Unterminated - Mini DIN $65.00 + Add to Cart
IBP Cable - For Mindray V series Monitor BC20-41367 IBP Cable - For Mindray V series Monitor $150.00 + Add to Cart
Pulse Oximetry Module - add-on for PS/NIBP Series - (FingerSims Required) MSP-2100 Pulse Oximetry Module - add-on for PS/NIBP Series - (FingerSims Required) $460.00 More Info
Pulse Oximetry Simulators - 80%, 90%, 97% - Fingers Only FingerSim Replacement Set Pulse Oximetry Simulators - 80%, 90%, 97% - Fingers Only $300.00 + Add to Cart
Power Supply - Universal (NIBP-1020, 1030, 1040 Only )(Replacement) BC20-21115 Power Supply - Universal (NIBP-1020, 1030, 1040 Only )(Replacement) $59.00 + Add to Cart
