Model/Series: SA-2005-INTL
BC Part #: SA-2005-INTL
Base Price: $1,425.00
Price: $1,425.00
Select Communications:

Select Power Cord:
Optional Items:

Included Items:
  • Soft Case - BC20-30107
    Chassis Cable - 8' Black - BC20-20110
    Power Cord (as Selected)
    Spare Fuse - UF-0250-01
    NIST Traceable Calibration Certificate
    User Manual
Quantity:


Description  more details

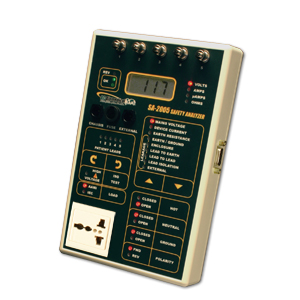

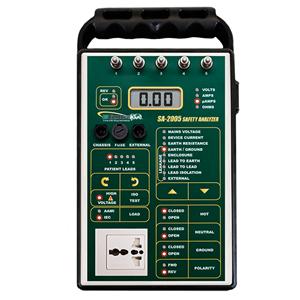

The BC Biomedical model The SA-2005-INTL is a microprocessor-based Electrical Safety Analyzer. There are three models that all provide the same basic functions. The SA-2005 adds patient lead testing for five inputs. The SA-2005-INTL adds patient lead testing for five inputs.



• Line voltage measurement
• Device under test current measurement
• Earth/ground lead resistance
• Earth/ground leakage current
• Enclosure/chassis leakage current
• External resistance
• External leakage current
• Source receptacle wiring integrity monitor
• True RMS measurements
• AAMI ES1-1993 or IEC 601 selectable test loads
• 85 to 265 VAC operation
• Full 20 Amp rating
• Touch control keys – no knobs
• Led status indicators
• Audio feedback
• Self test points
• Externally replaceable ground fuse
• Automatic load reversal delay
• Patient lead to lead leakage current
• Patient lead to earth/ground leakage current
• Patient isolation leakage current
• External isolation leakage current
• 5 universal patient lead inputs


• RS-232 serial communications



► Data Sheet

Product Manual

Available Model Comparison



ItemBC Part #Product NamePriceAction
Chassis Cable - 8' (BCB/Dale Type) - Black BC20-20110 Chassis Cable - 8' (BCB/Dale Type) - Black $100.00 + Add to Cart
Chassis Cable - 16' (BCB/Dale Type) - Black BC20-20112 Chassis Cable - 16' (BCB/Dale Type) - Black $122.00 + Add to Cart
External Cable - 8' (BCB/Dale Type) - Red BC20-20111 External Cable - 8' (BCB/Dale Type) - Red $100.00 + Add to Cart
External Cable - 16' (BCB/Dale Type) - Red BC20-20113 External Cable - 16' (BCB/Dale Type) - Red $122.00 + Add to Cart
Comm Cable - RS-232 - DB-9 (M) to DB-9 (F) (DA/ESU/SA) BC20-41341 Comm Cable - RS-232 - DB-9 (M) to DB-9 (F) (DA/ESU/SA) $120.00 + Add to Cart
Communication Cable - (USB to DB 9 M) BC20-41339 Communication Cable - (USB to DB 9 M) $120.00 + Add to Cart
Power Cord - North America - (SA Series)(C19) BC20-20400 Power Cord - North America - (SA Series)(C19) $68.00 + Add to Cart
Power Cord - Argentina - (SA Series)(C19) BC20-20405 Power Cord - Argentina - (SA Series)(C19) $68.00 + Add to Cart
Power Cord - Australia - (SA Series)(C19) BC20-20416 Power Cord - Australia - (SA Series)(C19) $68.00 + Add to Cart
Power Cord - China - (SA Series)(C19) BC20-20417 Power Cord - China - (SA Series)(C19) $68.00 + Add to Cart
Power Cord - Danish - (SA Series)(C19) BC20-20419 Power Cord - Danish - (SA Series)(C19) $68.00 + Add to Cart
Power Cord - India/South Africa - (SA Series)(C19) BC20-20409 Power Cord - India/South Africa - (SA Series)(C19) $68.00 + Add to Cart
Power Cord - Italy - (SA Series)(C19) BC20-20412 Power Cord - Italy - (SA Series)(C19) $68.00 + Add to Cart
Power Cord - Japan - (SA Series)(C19) BC20-20401 Power Cord - Japan - (SA Series)(C19) $68.00 + Add to Cart
Power Cord - Schuko/Cont Europe w/Ground - (SA Series)(C19) BC20-20403 Power Cord - Schuko/Cont Europe w/Ground - (SA Series)(C19) $82.00 + Add to Cart
Power Cord - Switzerland - (SA Series)(C19) BC20-20410 Power Cord - Switzerland - (SA Series)(C19) $68.00 + Add to Cart
Power Cord - UK/Ireland - (SA Series)(C19) BC20-20402 Power Cord - UK/Ireland - (SA Series)(C19) $68.00 + Add to Cart
Carrying Case - (Hard) - Safety Analyzers 610 Carrying Case - (Hard) - Safety Analyzers $97.00 + Add to Cart
Carrying Case - (Soft) - BC Biomedical Medium BC20-30107 Carrying Case - (Soft) - BC Biomedical Medium $75.00 + Add to Cart
Fuse - SA 2000 Series - 250mA 250V 5X20mm UF-0250-01 Fuse - SA 2000 Series - 250mA 250V 5X20mm $6.75 + Add to Cart
