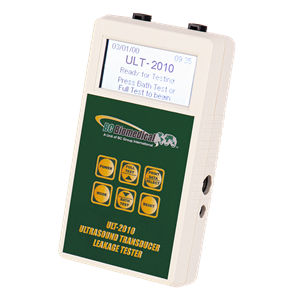

The ULT-2000 Series is a family of microprocessor-based, ultrasound transducer leakage testers.The ULT-2010 measures both the conductivity of the cleaning medium and the leakage current of the ultrasound transducer.
Add a Meter Mode and Datalogging with the ULT-2020.
• Large graphics display with cursor selection of options and setup of parameters• User-selectable source (challenge) voltage (90 to 275 VAC)• User-selectable source (challenge) frequency (50 or 60 Hz)• User-selectable test limits by ultrasound transducer manufacturer and model• 1% FS measurement accuracy• Auto ranging with 10, 250, or 500 mA FS• Automatic internal self test • Single button press for full system test• Simple pass / fail mode – for non-technical users• Analytical mode – for technical users• Digital calibration – no pots to turn• User-selectable display options• Battery life display (0 to 100%)• Programmable backlight timer• Contrast is software adjustable• Flash upgradeable firmware• RS-232 Communications• PC software (limit configuration tool)• Serial printer output with programmable user header• Real time clock• Compatible with Dale Technology® Dale 800 and Fluke Biomedical® ULT 800 ultrasound transducer adapters and dual conductivity probes
How to Perform an Ultrasound Leakage Test:
How to Customize Your ULT:
► Data Sheet ► Product Manual
► Adapter Selection Guide
► ULT Equipment List
► White Paper
► ULT Flyer
► How to Perform an Ultrasound Leakage Test (PDF) ► How to Perform an Ultrasound Leakage Test (Video Download)
► Flash Programmer
► Custom Limit Programmer / Datalog Viewer
► Driver for the USB cable(BC20-41361)
