Model/Series: USP-30
BC Part #: USP-30
Base Price: $1,795.00
Price: $1,795.00
Included Items:
  • Metal Case - Black
    1 Gram Cal Weight
    NIST Traceable Calibration Certificate
    User Manual
Quantity:


Description  more details

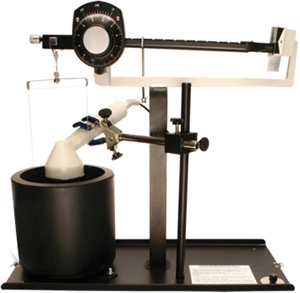

The Model USP-30 Ultrasound Power Meter is designed to measure the ultrasonic power output of diagnostic or therapeutic transducers up to 30 watts using the radiation force balance method. The USP-30 consists of a precision mechanical balance that measures from 0.15 to 30 Watts, a conical target suspended on a triangular hanger, a water tank, a transducer support rod with clamp and a carrying case. The transducer to be tested is center-mounted over the conical target with the transducer's radiating area immersed facedown in the water medium. The Model USP-30 Ultrasound Power Motor measures the average ultrasonic power by measuring the radiant force exerted by the transducer on the conical target. This target is coupled to the precision mechanical balance that is used to measure the gram-mechanical force due to the ultrasonic radiation. The gram force is directly proportional to the ultrasound power in watts when multiplied by a constant of 14.65. Therefore, a 2.05 gram force would be equal to 30 watts of ultrasound radiation. The heart of the USP-30 system is its air-filled conical target. The weight of this target is nulled to a minimum by using its own buoyancy. Incident ultrasound energy is mechanically transferred from the target to the precision balance where it is manually measured. Butyl rubber walls inside the water test tank absorb reflected ultrasound energy. This system provides a sturdy instrument with good measurement accuracy and low cost.
