Other products by RTI Electronics
Model/Series: 9729657-
BC Part #: 9729657-
Base Price: $16,745.00
Price: $16,745.00
Choose Your MA Probe

Optional Software Upgrade
Quantity:


Description  more details

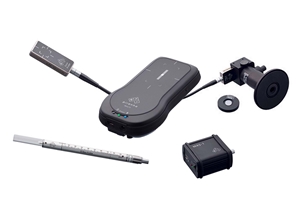

PIRANHA Premium with Ocean/MA Probe(Optional)/Tablet, w/Ion Chamber, Light Kit
This model is designed for radiography, fluoroscopy, mammography, dental and CT applications. It measures kVp, time, dose/dose rate, dose/pulse, HVL, Total Filtration, CTDI, luminance, illuminance, mA, mAs, and scattered/leakage radiation.


The Piranha Premium Kit is a convenient and cost effective way to purchase a complete RTI QA package. Containing some of the most practical RTI tools, the Piranha Premium Kit saves both money and time with efficient pricing and thoughtful packaging.
Realizing that all users are not the same, the Premium Kit is available in 6 variations. Starting with the Piranha multi-meter, each Kit includes a Piranha Dose Probe, Light Probe and CT Profiler or CT Ion Chamber & Chamber Adapter.

Your own choice of mAs-meter (invasive or non-invasive) and how you would like to collect the values – PC, tablet or handheld computer. The Premium Kit includes a robust carrying case with cut-outs for each item included and space for a T-20.


Fast for Real


Everything happens in a flash! The Black Piranha is quick, Ocean software is quick and therefore your daily QA-work will go quickly. Ocean can perform instant real-time analysis during your measurements. Ocean also prepares a report in the background as you go. So when the work is done, if you want a complete report of your work – just press print!

Use your tablet/laptop as both an interactive display during the measurements and as a powerful analysis tool when you are back at the office. All your measurements, along with the result and the report will be stored inside your tablet or laptop. No unnecessary, time-consuming data-transfer at the end of the day.

Simply Plug n Play


Everything happens automatically – just plug n play. The Quick Check can almost feel what you are about to do. The Quick Check feature identifies your probe and selects the optimum Piranha settings for your measurements. It can also be programmed to always start with the kind of set up that you usually start your QA-work with. There is really not much you have to think about before you begin – sit back and let the Piranha do the work!

A Piranha Never Forgets


During the measurements you will only see the desired values on your tablet or laptop but since the Piranha continues to work behind the scenes, you always have access to all of the data from each measurement. This enables you to perform for instance trend analysis and study the history of each X-ray equipment – even months after you have completed your measurements.

A Complete QA Solution Instantly


The Piranha comes ready-to-use with everything you need included. It is really an all-in-one multifunction meter. Connect to your computer wireless or via USB and you have a complete QA-system! The number of Piranha models available ensures that you only pay for what you need. As your needs grow, you have unlimited ability to upgrade your Piranha.

Position Check


Piranha has a unique feature that makes it possible to check the position of the detector before measuring. By using the “Position Check” function, you can verify that the detector area is fully irradiated. Possible field inhomogeneities are also neutralized.

RTI Dose Probe


The RTI Dose Probe is an external dose probe, designed to perform very low dose rate measurements for instance on image intensifiers. To avoid or minimize interference with AEC (Automatic Exposure Control) on X-ray equipment, the probe is very small. This also enables to fit it into the table bucky. Since it is a solid-state detector, no corrections for pressure or temperature are needed. Neither is bias voltage. With the extra ordinary sensitivity of the external Dose Probe it is even suitable for scatter and leakage measurements.

Piranha Key Features:


• All-in-one multifunction X-ray meter
• One-shot HVL for Mammography, Radiography, CT, and Dental
• Solid-state detectors = no need to compensate for temperature & pressure
• Can measure on scanning beams as well as tomosynthesis
• Optimized for X-ray equipment from a large number of manufacturers
• Built-in energy compensation
• Can be used together with ion chambers
• Wide-range detection of total filtration
• 100 meters Bluetooth range
• Unique detector design to minimize position and rotation dependence
• Automatic recognition of external probes
• Small, compact & robust – easy to place
• Backscatter protected
• Long-lasting rechargeable battery
• Lead-free
• Always free firmware upgrades
• Firmware is easily updated via Internet or CD
• Upgradable to any model you want
• Up to 10-year warranty
• 2-year Calibration Cycle
