Other products by Bacharach
Model/Series: 3015-4790
BC Part #: 3015-4790
Price: $4,414.00
Quantity:


Description  more details

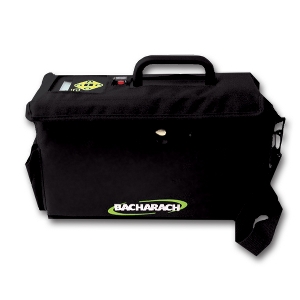

Bacharach’s TGA (Trace Gas Analyzer) is an advanced N2O Analyzer. It uses a highly accurate non-dispersive IR cell providing superior stability and repeatability, with a measurement resolution of 1PPM-full range. It provides measurements in either PPM, real time or elapsed time TWA and it has a leak check mode with audible and visual alarms. It has an internal sampling pump and the self contained purge-air bag provides a constant zero enabling the analyzer to be used in contaminated environments. The TGA has data-logging capabilities to store up to 200 readings which can be downloaded to an optional printer or to a computer.

The rechargeable Li - ION battery provides 8 to 12 hours of continuous operation with a low battery indicator. It provides an effective means of monitoring occupational exposure to N2O in hospital operating rooms, dental offices, veterinary clinics and surgical care centers. The TGA can also be used to check for leaks in medical gas pipelines.


• Continuous data-logging stores up to 200 readings
• Two TWA capabilities - real time / elapsed time
• Built-in purge cycle using a bladder bag provides a constant zero
• Displays PPM/TWA simultaneously
• Internal pump for remote sampling with low flow indicator
• Built-in user-programmable alarm
• Rapid detection of changing N2O levels
• Easy-to-read LCD display
• 8-12 hours of operation on a full charge
• Maintenance free infrared N2O sensor


Data Sheet
