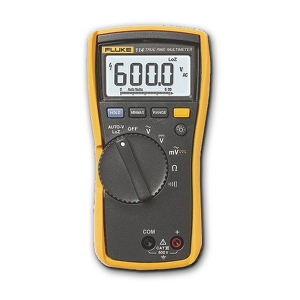

Designed by electricians. Engineered by Fluke. Compact true-rms meter for electrical troubleshooting. The Fluke 114 is the troubleshooting tool for "go/no-go" testing. It includes a feature to prevent false readings caused by ghost voltage.
Features:
• True RMS .5% accuracy
• 28% larger digits
• 6000 counts Bargraph
• Backlit
• Min-max recording
• Display hold Ergonomic, compact shape
• Voltage Resistance Detect AC voltage without carrying a second tool
• Works down to 24VAC in bare wire applications
• Automatically determines AC or DC voltage eliminating guesswork
• Correctly displays voltage measurement without extra steps
• Reduces chance of false readings due to ghost voltage
• Safer troubleshooting
Specifications:
• Maximum voltage between any terminal and earth ground: 600 V
• Surge protection 6 kV peak per IEC 61010-1 600 VCAT III
• Pollution Degree 2
• Display Digital: 6,000 counts, updates 4 per second
• Bar graph: 33 segments, updates 32 per second
• Operating Temperature: -10°C to + 50°C
• Storage Temperature: -40°C to + 60°C
• Battery type: 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
• Battery Life: 400 hours typical, without backlight
• Accuracy Specifications DC millivolts
• Range: 600.0 mV
• Resolution: 0.1 mV
• Accuracy: ± ([% of reading] + [counts]): 0.5% + 2 DC volts
• Range/Resolution: 6.000 V / 0.001 V
• Accuracy: ± ([% of reading] + [counts]): 0.5% + 2 Auto volts
• Range: 6
