Model/Series: Fluke 123B
BC Part #: Fluke 123B
Base Price: $1,624.99
Price: $1,624.99
Included Items
  • NIST Traceable Calibration Certificate
Quantity:


Description  more details

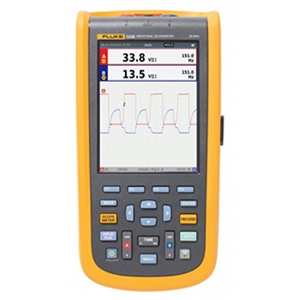

The compact ScopeMeter® 120B Series, is the rugged oscilloscope solution for industrial electrical and electro-mechanical equipment troubleshooting and maintenance applications. It's a truly integrated test tool, with oscilloscope, multimeter and high-speed recorder in one easy-to-use instrument. The ScopeMeter 120B Series also integrates with Fluke Connect mobile app and FlukeView® for ScopeMeter software to enable further collaboration, data analysis and archiving of critical test information

The 120B Series Industrial ScopeMeter® Test Tools include innovative functions designed to help technicians troubleshoot faster and get the answers they need to keep their systems up and running. Display waveforms with Connect and View™ trigger and setup technology and automatically view related numerical measurements using Fluke™ IntellaSet technology all without making manual measurement adjustments. With Recorder Event Detect capabilities, elusive intermittent events are captured and logged for easy viewing and analysis.


• Dual-input digital oscilloscope and multimeter
• 40 MHz or 20 MHz oscilloscope bandwidth
• Two 5,000-count true-rms digital multimeters
• Connect-and-View™ trigger simplicity for hands-off operation
• IntellaSet™ technology automatically and intelligently adjusts numerical readout based on the measured signal
• Dual-input waveform and meter reading recorder for trending data over extended periods
• Recorder Event Detect captures elusive intermittent signals on repetitive waveforms up to 10 KHz
• Shielded test leads for oscilloscope, resistance and continuity measurements
• Resistance, continuity, diode and capacitance meter measurements
• Power measurements (W, VA, VAR, PF, DPF, Hz)
• Voltage, current and power harmonics
• Check Industrial networks with BusHealth physical layer tests against defined reference levels
• Save or recall data and instrument setups
• Store instrument setups defined by a test sequence for routine maintenance or most often used test procedures.
• External optically isolated USB interface to transfer, archive and analyze scope or meter data
• Optional WiFi adapter connected to internal USB port to wirelessly transfer information to the PC, laptop or Fluke Connect® mobile app*
• FlukeView® ScopeMeter® Software for Windows®
• Rugged design to withstand 3g Vibration, 30g shock, and rated IP51 according to EN/IEC60529
• Highest safety rating in the industry: safety rated for CAT IV 600 V
• Li-Ion rechargeable battery, seven-hours operation (with four-hour charge time)
