Model/Series: BC20-40530
BC Part #: BC20-40530
Price: $699.00
Quantity:


Description

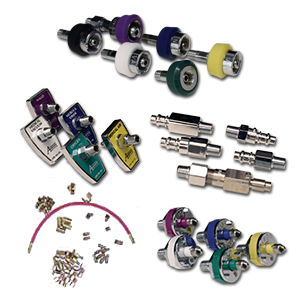

This kit includes all of the fittings needed to test most outlets (Ohmeda Diamond & DISS, Puritain-Gennett and Chemtron) for common gases: air. oxygen, nitrous oxide, vacuum, evac and nitrogen.



DISS Adapters
1 DA-15U2-M2-DH DISS HAND TIGHT 1/8"MNPT N2O
1 DA-15UN-M2-DH DISS HAND TIGHT  1.5" STEM 1/8" MNPT NIT
1 DA-15UA-M2-DH DISS HAND TIGHT  1.5" STEM 1/8" MNPT AIR
1 DA-15UV-M2-DH DISS HAND TIGHT 1.5" STEM 1/8"MPT US VAC
1 DA-15UW-M2-DH DISS HAND TIGHT * 1.5" STEM 1/8" MNPT WAGD
1 DA-15UO-M2-DH DISS H.T 1-1/2" STEM 1/8" MNPT OXY USA
Ohmeda Diamond Adapters
1 AD-OHUO-M2 OHMEDA ADAPTER 1/8" MNPT OXY USA
1 AD-OHUA-M2 OHMEDA ADAPTER 1/8" MNPT USA AIR
1 AD-OHU2-M2 OHMEDA ADAPTER 1/8" MNPT N2O
1 AD-OHUV-M2 OHMEDA ADAPTER 1/8" MNPT VAC USA
1 AD-OHUW-M2 OHMEDA ADAPTER 1/8" MNPT WAGD
Chemetron Adapters
1 AD-CHUO-M2 CHEMETRON ADAPTER 1/8" MNPT OXY USA
1 AD-CHUA-M2 CHEMETRON ADAPTER 1/8" MNPT AIR USA
1 AD-CHUV-M2 CHEMETRON ADAPTER 1/8" MNPT VAC USA
1 AD-CHU2-M2 CHEMETRON ADAPTER 1/8" MNPT N2O
1 AD-CHUW-M2 CHEMETRON ADAPTER 1/8" MNPT WAGD
Puritan Bennett Adapters
1 AD-PBUO-M2 PURITAN BENNET ADAPTER 1/8" MNPT  OXY US
1 AD-PBUA-M2 PURITAN BENNET ADAPTER 1/8" MNPT  AIR US
1 AD-PBUV-M2 PURITAN BENNET ADAPTER 1/8" MNPT  VAC US
1 AD-PBU2-M2 PURITAN BENNET ADAPTER 1/8" MNPT  N2O
1 AD-PBUW-M2 PURITAN BENNET ADAPTER 1/8" MNPT  WAGD
Brass Fittings For Flowmeter/Pressure Gauge Assy - Bottom
1 Brass Elbow 45° 1/4" MNPT x 1/4"FNPT
1 Brass Bushing 3/8" MNPT x 1/4" FNPT
1 Brass Tee 3/8" x 3/8" x 3/8" FNPT
1 Brass Bushing 3/8" MNPT x 1/8" FNPT 1
1 Brass Nipple 3/8" NPT
1 Quick Connector 1/4" MNPT
Brass Fittings For Flowmeter - Top
1 Quick Connector 1/4" MNPT
Brass Fittings For Vacuum Gauge
1 Brass Elbow 90° 1/4" FNPT x 1/4" FNPT
1 Quick Connector 1/4" MNPT 1
Extension Hose - 2' 1/4" MNPT (Both Ends)
Filter Assembly
1 Brass Bushing 3/8" MNPT x 1/4" FNPT
1 Brass Bushing 3/8" MNPT x 1/4" FNPT
2 Quick Connector 1/4" MNPT
Miscellaneous
Coupler x Coupler Assy (Two 1/4" MNPT Couplers & one nipple)
21 Quick Connectors 1/8" FNPT With Bushing (For Adapters)
1 Flexible pipe for O2 sensor
