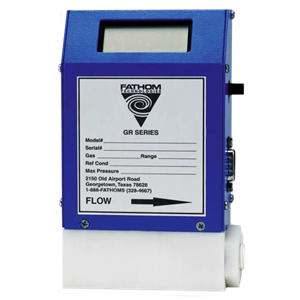

Gas entering the flow body is divided at a constant ratio by a laminar flow bypass. Gas molecules traveling through the sensor carry heat downstream creating a differential temperature between the RTDs. The difference in temperature between the RTDs is proportional to the mass flow rate.
Fathoms electronics compare the gas flow rate to a command setpoint (local or remote), then applies the necessary coil voltage magnetically raising or lowering the actuator above the orifice to obtain the desired flow rate.
Features
• Thermal Sensor
• 1% Accuracy with 100:1 Turndown Ratio
• Integral Valve, Display & Setpoint
• Linear Output (0-5 VDC or 4-20 ma)
• Single Ended Power Supply
• Delrin or Stainless Flow-Body
• NIST Traceable Calibration
• Low Cost
Benefits
• No Moving Parts, Temperature or Pressure Corrections
• Complete flow system in one package
• Read and Control over the entire range
• No Corrections or Square Root extractions
• Powered by 12 VDC, 24 VDC or 115 VAC
• Compatibility with any gas
• Insures accuracy of measurement & control
• Designed for OEM applications
