Model/Series: Handi+
BC Part #: R218P12
Price: $205.00

Description  more details

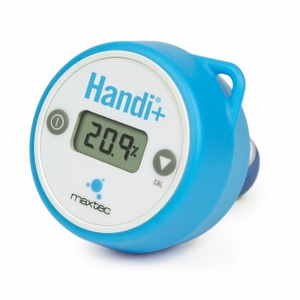

Maxtec has improved the Handi O2 Analyzer to better meet your needs for oxygen analysis. The Handi O2 Analyzer is simple to use, has a one-touch calibration button, new overmold and calibration reminder along with the traditional 2 year warranty. This analyzer is great for spot-checking O2 percentage in hospitals, clinics and in homecare environments.

Handi+ Oxygen Analyzer Includes:

• R218M12 - Operation Manual, Handi+
RP16P02 - "T" Adapter
• R110P10-001 - Flow Diverter Fitting
R207P17 - Barbed Adapter
• R100P92-002 - Clear Tubing
RP76P06 - Lanyard
R218P09 - Handi+ Cover

• New and improved one-touch calibration button
• Overmold for extra protection
• Small, convenient and portable
• Auto-off
• 24 month

  • Sensor Type: MAX-250 galvanic cell w/Temperature Compensation (Non-Replaceable)
  • Measurement Range: 0.0 - 99.9% oxygen (gas)
  • Resolution/Display: 0.1% - The three digit LCD indicates values between 0.0 - 99.9% oxygen. Over range indicated by one decimal point on display located after the first digit.
  • Response Time: < 15 seconds for 90% step change (at 25°C)
  • Linearity/Accuracy: @ 15° to 40°C. ± 1 % of full scale at constant temperature, R.H. and pressure when calibrated at full scale ± 3% actual oxygen level over full operating temperature.
  • Power: Powered by one internal, non-replaceable, Lithium battery, CR2450. Power on push button automatically shuts off after 80 seconds time-out. Electronics rated general purpose; not for use in hazardous areas or for use with flammable gases.
  • Battery Life: Approximately 1850 hours (74,000 cycles)
  • Sample Port: M-16 x 1 thread with diverter fitting and barbed tubing adapter.
  • Diverter Fitting: Fits medical standard 15mm “T” adapter.
  • Temperature: Operating: 15° to 40°C, Storage: -15° to 50°C
  • Expected Storage Life: Two months. Special freshness seal on sensor.
  • Operating Pressure: Atmospheric pressure to 3psig.
  • Environmental: General purpose housing equivalent to NEMA 1. The Handi+ is not waterproof. 0 - 95% RH, non-condensing.
  • Weight: Approximately 2.12 oz (60 grams)
