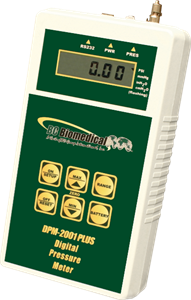

Model/Series: DPM-2001PLUS
BC Part #: DPM-2001PLUS
Base Price: $1,270.00
Price: $1,270.00
Carrying Case
Optional Service Manual
Quantity:


Description  more details

The DPM-2000 Series is a microprocessor-based digital pressure meter family. It measures both gas and liquid pressures and provides multiple engineering unit displays for the results. The DPM-2001 Plus has all the features of the DPM-2001 and adds Min/Max Pressure value storage and RS-232 communication.


• Min/Max pressure value storage
• RS-232 serial communications
• -13.50 to 100.00 psi range
• 0.1% fs accuracy (pressure)
• Pressure scales include psi, inh2o, cmh2o, and mmhg
• Digital calibration – no pots to turn
• 5 digit lcd plus scale indication
• Battery life display (0 to 100%)
• Programmable digital filter
• LCD contrast is software adjustable
• 16 bit pressure measurement
• Digital zero adjust



Data Sheet

Product Manual
