Model/Series: DPM-2200 Series
BC Part #: DPM-220
Base Price: $1,129.00
Price: $1,129.00
Communication and Min/Max:
Pressure Sensor 1 (Included): Male Luer Lock Connector
Pressure Sensor 2: Male Luer Lock Connector
Analog Output:
Pressure Adapters

Optional Service Manual

Description  more details

Please note that the typical lead time for these custom order pressure meters is 3 weeks.

Did you know that we offer several pre-configured DPM options that are typically in stock?
Be sure to check out our pre-configured DPM-2200 Series meters.

See DPM-220210010NHF

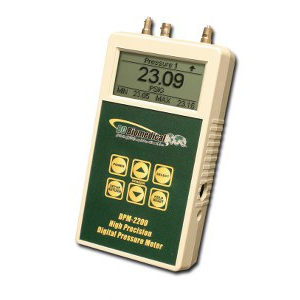

The Model DPM-2200 Series is a microprocessor-based, high precision Digital Pressure Meter family. These meters measure both gas and liquid pressures and provide multiple engineering unit displays for the results. The unit may have one or two pressure sensors and an optional temperature sensor input to measure pressure and temperature all in one meter. The DPM 2200 Series is intended to be used by skilled technicians in the evaluation and servicing of a wide variety of medical equipment.

• Large graphic display
• Selectable pptions and parameter setup
• 0.05% FS pressure accuracy
• Standard pressure scales include 13 different engineering unit ranges: (psi, mmHg@0c, mmHg@20c, inHg@0c, inHg@20c, CmH2O@20c, inH2O@4c, inH2O@20c, inH2O@60f, Kg/cm2, kpa, bar, mbar)
• Digital calibration – no pots to turn
• Battery life display (0 to 100%)
• Programmable digital filter
• Display contrast is software adjustable
• 24 bit measurement
• Digital zero adjustment – no pots to turn

• RS232 Serial Communications
• Min/Max storage
• Independent pressure channel
• DC or high frequency analog output
• Temperature option

• YSI 700 or RTD temperature probe interface
• -20.0 to100.0 c / -4.0 to 212.0 f temperature range
• 0.5% FS accuracy
• Min/Max temperature value capture and storage



Product Manual
