• Safety Analyzer - 10 Patient Leads

click on thumbnail to zoom
Other products by BC Biomedical
Model/Series: SA-2010
BC Part #: SA-2010
Base Price: $2,197.00
Price: $2,197.00
Optional Items:

Included Items:
  • Soft Case - BC20-30107
    Chassis Cable - 8' Black - BC20-20110
    Spare Fuse - UF-0250-01
    NIST Traceable Calibration Certificate
    User Manual
  • Safety Analyzer Protective Boot
Quantity:


Description  more details

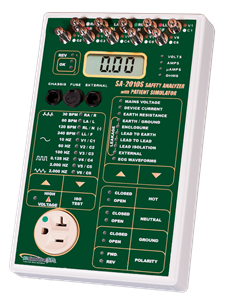

BC Biomedical's SA-2000 Series is a microprocessor-based Electrical Safety Analyzer family. All three models provide the same basic functions. The SA-2005 adds patient lead testing for five inputs. The SA-2010 adds Patient Lead testing for 10 inputs.

SA-2000 Series Protective Boot Included with All Safety Analyzers.



• Line voltage measurement
• Device under test current measurement
• Earth/ground lead resistance
• Earth/ground leakage current
• Enclosure/chassis leakage current
• External resistance
• External leakage current
• Source receptacle wiring integrity monitor
• True RMS measurements
• AAMI ES1-1993 or IEC 601 selectable test loads
• 85 to 265 VAC operation
• Full 20 Amp rating
• Touch control keys – no knobs
• Led status indicators
• Audio feedback
• Self test points
• Externally replaceable ground fuse
• Automatic load reversal delay
• Patient lead to lead leakage current
• Patient lead to earth/ground leakage current
• Patient isolation leakage current
• External isolation leakage current
• 10 universal patient lead inputs



• RS-232 Serial Communications- Contact Customer Service if Communication option is necessary.




► Data Sheet

Product Manual

Available Model Comparison



How To - SA 2000 Series:
