Model/Series: SA-2010S-INTL
BC Part #: SA-2010S-INTL
Base Price: $2,332.00
Price: $2,332.00
Select Power Cord:
Optional Items:

Included Items:
  • Soft Case - BC20-30107
    Chassis Cable - 8' Black - BC20-20110
    Power Cord (as Selected)
    Spare Fuse - UF-0250-01
    NIST Traceable Calibration Certificate
    User Manual
Optional Service Manual

Description  more details

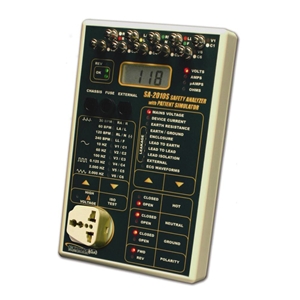

The BC Biomedical Model SA-2010S-INTL Series is a microprocessor-based electrical safety analyzer with a built-in patient simulator. It allows for a multitude of tests to be performed on a device using the same unit and lead connections.  It provides all the features of an electrical safety analyzer, as well as ECG Simulation with four waveforms (with constant QRS duration) and six machine performance testing waveforms. There is Patient Lead testing for 10 inputs.


• Led status indicators
• Audio feedback
• Touch control keys – no knobs
• 10 universal patient lead inputs
• High impact plastic case


• Line voltage measurement
• Device under test current measurement
• Earth / ground lead resistance
• Earth / ground leakage current
• Enclosure / chassis leakage current
• External resistance
• External leakage current
• Source receptacle wiring integrity monitor
• True RMS measurements
• AAMI ES1-1993 or IEC 601 selectable test loads
• 85 to 265 VAC operation
• Full 20 amp rating
• Self test points
• Externally replaceable ground fuse
• Automatic load reversal delay
• Patient lead to lead leakage current
• Patient lead to earth / ground leakage current
• Patient isolation leakage current
• External isolation leakage current


• Sine: 10, 60 AND 100 HZ
• ECG: 30, 60, 120 AND 240 BPM
• Square: 0.125 AND 2.0 HZ
• Triangle: 2 HZ
• High level output (1 V p-p)
• Amplitude accuracy: +/- 2%
• Frequency accuracy: +/- 0.5%


• RS-232 serial communications- Contact Customer Service if Communication option is necessary.
