Model/Series: PowerGuide-4400
BC Part #: PowerGuide-4400
Price: $7,940.00
Quantity:


Description  more details

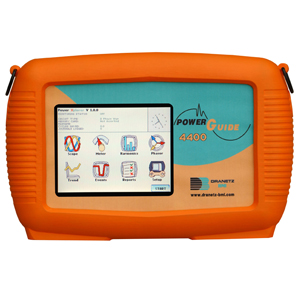

Equipped with eight independent channels, the 3-phase PowerGuide 4400 is the only advanced power monitoring instrument to incorporate a color touchscreen into its lightweight design. Automated setups provide instant detection of circuits and configurations, ensuring that the instrument is ready to successfully collect data. Users can select the length and mode of data collection, including troubleshooting, data logging, power quality surveys, energy and load balancing.


Data can be viewed in real time using scope mode, meter mode, event mode, harmonics spectrum or phasor diagrams. With the touch of your finger or a stylus, you can view data and zoom-in on captured disturbances for more detail and automated event characterization.



• Eight channels, 4 voltage & 4 current
• Intuitive color touch screen
• Light weight – Less than 4 pounds, 2 kg – with rugged rubber boot
• AC/DC applications
• Automated setups for “out of the box” instrument readiness
• Unique “report card” annunciator that instantly characterizes events
• Samples at 256 samples/cycle
• Independent voltage & current triggering, cross triggering
• Capture of low-medium frequency transients
• THD/harmonic spectrum and TID/interharmonics spectrum to the 63rd
• Remote communications—RS-232, Ethernet or USB
• Battery or AC mode
• Built in UPS battery with external charger
• Expanded memory up to 256 MB
• Available languages – English, Spanish, French, German, Italian, Swedish, Finnish, Chinese, Japanese, Korean
• DRAN-VIEW enabled (Windows NT, 98, ME, 2000, XP)
• Measures flicker according to IEC 61000-4-15
• Measures wide range of parameters, including crest factor, K factor, transformer derating factor and telephone interference factor
• Complies with IEEE 1159, IEC 61000-4-30 Class A and EN50160



Datasheet



Manual


Applications





ItemBC Part #Product NamePriceAction
Fiber to Ethernet Adapter with PS COM-OUA Fiber to Ethernet Adapter with PS $498.00 + Add to Cart
Fiber to RS232 Adapter COM-RS232 Fiber to RS232 Adapter $330.00 + Add to Cart
Fiber to USB Adapter COM-OEA Fiber to USB Adapter $498.00 + Add to Cart
Fiberglass Enclosure 12 x 14 ENCL-HH Fiberglass Enclosure 12 x 14 $550.00 + Add to Cart
Carrying Case - Dranetz Series SCC-4300 Carrying Case - Dranetz Series $195.00 + Add to Cart
Rugged Ship Container RSC-4300 Rugged Ship Container $420.00 + Add to Cart
NEMA4 Lockable Portable Case LPC-PX5 NEMA4 Lockable Portable Case $1,905.00 + Add to Cart
CT Interface Cable for LPC (included with LPC-PX5) CTIC-LPC-4300 CT Interface Cable for LPC (included with LPC-PX5) $204.00 + Add to Cart
4 Pk Fused Voltage Clips; UL listed FVA-4 4 Pk Fused Voltage Clips; UL listed $495.00 + Add to Cart
Voltage Cable Pack; Includes 8 colored cables, and jumpers VCP-4300 Voltage Cable Pack; Includes 8 colored cables, and jumpers $262.00 + Add to Cart
High Voltage cable set - includes 8 colored voltage leads MP-HVC High Voltage cable set - includes 8 colored voltage leads $475.00 + Add to Cart
Fused Voltage Clip; UL listed FVA-1 Fused Voltage Clip; UL listed $157.00 + Add to Cart
Single Phase Test Cable, USA to 4mm 114015-G1 Single Phase Test Cable, USA to 4mm $388.00 + Add to Cart
Adapter Cable for RPM Clamp-On CT'S TRTOREDEL Adapter Cable for RPM Clamp-On CT'S $78.00 + Add to Cart
USB Compact Flash Reader FLASHREADER-USB USB Compact Flash Reader $141.00 + Add to Cart
PCMCIA Compact Flash Reader 901122 PCMCIA Compact Flash Reader $73.00 + Add to Cart
Battery Pack for PX5, 4400, PowerVisa, MeasurePAD PP4300 BP-PX5 Battery Pack for PX5, 4400, PowerVisa, MeasurePAD PP4300 $115.00 + Add to Cart
Phase Power Adapter, 600VAC, 120V output PPA-PP1R/115 Phase Power Adapter, 600VAC, 120V output $525.00 + Add to Cart
Power Quality Handbook HB114414-S Power Quality Handbook $75.00 + Add to Cart
Handbook Set includes all three books HANDBOOKSET Handbook Set includes all three books $190.00 + Add to Cart
Handbook of Power Signatures A-010S Handbook of Power Signatures $85.00 + Add to Cart
Energy Management Handbook HB114415 Energy Management Handbook $55.00 + Add to Cart
PX5, 4400, PowerVisa Training CD CD-PX5/4400-OP PX5, 4400, PowerVisa Training CD $388.00 + Add to Cart
Daytronic Memory Card - MeasuringPAD CFDATA-DD Daytronic Memory Card - MeasuringPAD $265.00 + Add to Cart
