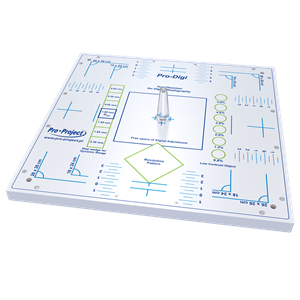

The Pro-Digi phantom is dedicated for acceptance and constancy tests of digital radiography equipment.
It can be used to measure:
- collimation / beam alignment
- position and size of the effective radiation field
- dynamic range
- spatial resolution
- contrast resolution
- homogeneity
Technical data (can be modified to customer specifications):
- dimensions: 310 x 310 x 14 mm
- 1 mm thick copper plate embedded in PMMA
- 7-step copper wedge
- 6 low contrast elements
- free area for signal calibration
- markings to determine the size and position of the effective radiation field
- pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm)
- cone for perpendicular X-Ray beam control in the range of 0° ÷ 1.5°
Product features:
- complies with:
– IEC 61223-3-1
– DIN 6868/58 and DIN 6868/13
- CE certified
- the manual provides detailed guidelines for carrying out each test, results assessment and registration
