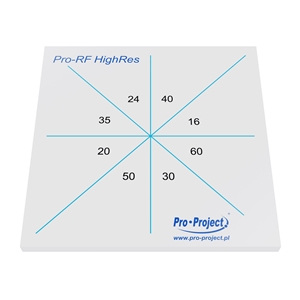

The test phantom for evaluation of high contrast resolution of fluoroscopy system in one exposition. It consists ofeight patterns of wire mesh in a pie shape.
Technical data (can be modified to customer specifications):
- dimensions: 180 x 180 x 10 mm
- cover made of PMMA
- two standard configurations of high contrast wire mesh patterns:
– for standard systems: 16, 20, 24, 30, 35, 40, 50, 60
– for higher resolution systems: 60, 70, 80, 90, 100, 110, 120, 150
Product features:
- complies with:
– IEC 61223-3-1
- CE certified
- the manual provides detailed guidelines for carrying out each test, results assessment and registration
