• GE Anesthesia Fitting Kit

click on thumbnail to zoom
Other products by BC Biomedical
Model/Series: BC20-01009
BC Part #: BC20-01009
Price: $327.00

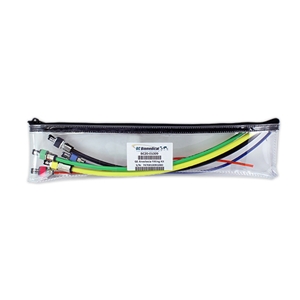

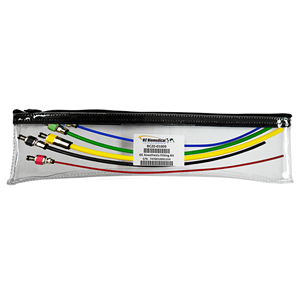

The BC20-01009 is a GE Anesthesia Fitting Kit.

Recommended model for use with GE Aestivas, Aespires, Avance, Aisys, Avance CS2, Aisys CS2, and CS600 anesthesia machines. Certain tubes are also applicable to the Engstrom Ventilator (Red, Yellow, Green and Black). The DPM-235175NNFC Digital Pressure Meter is the recommended pressure meter for use with the kit for testing these systems.

Kit includes five connector assemblies for testing pressure regulators on GE Anesthesia Machines using a digital pressure meter that contains a CPC Coupler. Connector assemblies are color coded and tubing diameters match specific gases.

The BC20-01009 is pictured with the DPM-235175NNFC Digital Pressure Meter (not included).

Black Tube ¼ legris used for:
• Adjusting the drive gas regulator on all anesthesia machines
• Testing the vaporizer pressure relief valve for all machines except Aisys

Green Tube 6 mm legris used for:
• Adjusting the O2 primary (cylinder) regulator(s) for all machines
• Adjusting the O2 flush regulator for all machines except CS600

Red Tube 1/8 inch legris used for:
• Adjusting the secondary regulators on the Aestiva,  Aespire, CS600

Yellow Tube 8 mm legris used for:
• Adjusting the Air Primary Regulator (cylinder) on all machines

Blue Tube 4 mm kegris used for:
• Adjusting the N2O Primary Regulator (cylinder) on all machines
