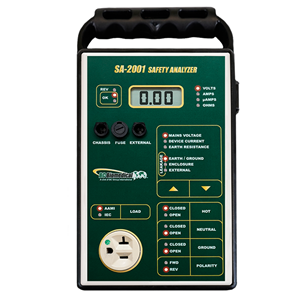

• Safety Analyzer - Base Model

click on thumbnail to zoom
Other products by BC Biomedical
Model/Series: SA-2001
BC Part #: SA-2001
Base Price: $1,268.00
Price: $1,268.00
Optional Items:

Included Items:
  • Soft Case - BC20-30107
    Chassis Cable - 8' Black - BC20-20110
    Spare Fuse - UF-0250-01
    NIST Traceable Calibration Certificate
    User Manual

Description  more details

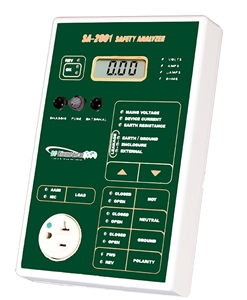

The BC Biomedical model SA-2001 is a microprocessor-based Electrical Safety Analyzer. All models provide the same basic functions.

• Line voltage measurement
• Device under test current measurement
• Earth/ground lead resistance
• Earth/ground leakage current
• Enclosure/chassis leakage current
• External resistance
• External leakage current
• Source receptacle wiring integrity monitor
• True RMS measurements
• AAMI ES1-1993 or IEC 601 selectable test loads
• 85 to 265 VAC operation
• Full 20 Amp rating
• Touch control keys – no knobs
• Led status indicators
• Audio feedback
• Self test points
• Externally replaceable ground fuse
• Automatic load reversal delay


• RS-232 serial communications- Contact Customer Service if Communication option is necessary.

How To - SA 2000 Series:


► Data Sheet

Product Manual

Available Model Comparison
