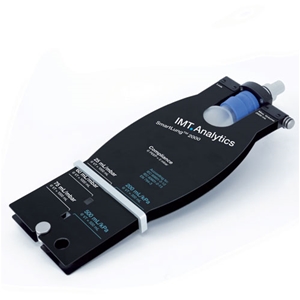

• Lung Simulator - SmartLung 2000

click on thumbnail to zoom
Other products by IMT Analytics
Model/Series: SL-2000-2L
BC Part #: SL-2000-2L
Price: $700.00
Quantity:


Description  more details

With the new SmartLung 2000 you can test if a ventilator is in compliance with the following standards: IEC 60601-2-12,IEC 60601-2-13 and EN 794-3.

• 2000-ml-bag
• Applicable volume from 0 to 1000 mL
• Testing according to IEC standards (ventilators and anaesthesia machines)
• The only test lung on the market that covers all the necessary test points
• Outstanding features for patient simulations in ventilator training

With the SmartLung adult, you can control the function of a ventilator over all norms. The SmartLung 2000 has the same size as ordinary test lungs, but it comes with an adjustable compliance and an adjustable resistance from 5 up to 200 mbar/L/s. The leak-compensation of a ventilator can be tested, thanks to the controllable leakage. It is also possible to test the patient-trigger-function with the SmartLung 2000.


The SmartLung 2000 is the best tool for testing your ventilator and anesthesia devices and an ideal addition to the flow- and pressure measurement device FlowAnalyser. By simply using the slider, the test lung can simulate different degrees of lung-hardness according to different standards and a simple twist of the connector is all it takes to simulate different airway-resistances.



► Datasheet
