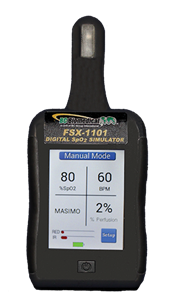

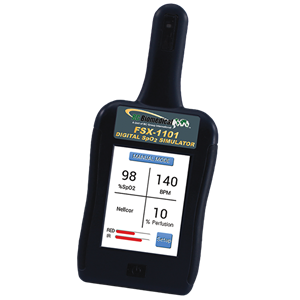

• FSX-1101 Digital SPO2 Simulator

click on thumbnail to zoom
Other products by BC Biomedical
Model/Series: FSX-1101
BC Part #: FSX-1101
Base Price: $1,649.00
Price: $1,649.00
Included Items
  • Power Supply with International Adapters
    Zippered Carrying Case
    Sync Cable for NIBP & PS Series
    Micro USB Cable
    NIST Traceable Calibration Certificate
    User Manual
  • The FSX-1101 LIFETIME Warranty requires that the FSX-1101 be registered and returned to BC Group for calibration annually. To Register your FSX-1101, follow the Warranty Registration link in the More Details tab below.

Description  more details

The FSX-1101 is a digital SPO2 simulator with many features, including a LIFETIME Warranty*. It is small and light weight, yet very powerful. It has a bright, 2.4” color touchscreen that, coupled with an intuitive menu structure, allows easy access and viewing of all setup and function parameters. To make testing your SPO2 monitor easier and faster, the FSX-1101 has a set of factory presets. Need to do a more specific evaluation? There is a Manual Mode that allows individual control over each parameter only limited by the specific values that are available. The FSX-1101 is at the top of its class in performance and specifications. SPO2 (in %) is selectable from six values with 2% accuracy. Heart Rate (in BPM) is selectable from 10 values with 1% accuracy.

Features - FSX-1101:
• Small, Handheld, Lightweight, Rugged
• Intuitive User Interface
• Color Touch Screen
• Preset & Manual Mode Operation
• 6 Saturation Levels from 80-99%
• Heart Rates from 30-240 BPM
• Adjustable Perfusion Index
• Pulse Synchronized with NIBP-1000, PS-2100 or PS-2200 Series

The FSX-1101 can be connected to your BC Biomedical NIBP-1000 Series, PS-2100 Series or PS-2200 Series Patient Simulator via the auxiliary port (by using the provided cable). This allows for a synchronized SPO2 and ECG simulation for your monitors.

The FSX-1101 can be powered by two internal AA batteries or by connecting the provided cable to the auxiliary port on your BC Biomedical Patient Simulators, any USB port or the provided universal AC adapter. In battery powered operation, the battery life is 10 hours of full operation with full backlight intensity.

* LIFETIME Limited Warranty requires product registration and return to Factory for annual calibration.

Please note, the firmware update video can now be found on the More Details tab along with the firmware update link.

► Data Sheet

► Product Manual


Firmware Update

► Update Firmware


► Register your FSX-1101


New Product - FSX-1101:


How To - FSX-1101:

How To - FSX-1101 Offset Feature:
