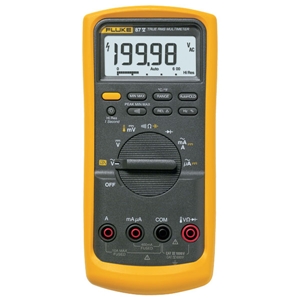

New features for maximum productivity! Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment. Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument. Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks. Large digit display with bright, two-level backlight makes the 80- Series V significantly easier to read than older models.
Features:
• True-rms ac voltage and current for accurate measurements on non linear signals
• Selectable filter for accurate voltage and frequency measurements on motor drives
• 0.05 % dc accuracy
• 6000 count
• 3-3/4 digits with 4-1/2 digit mode for precise measurements (20,000 counts)
• Measure up to 1000 V ac and dc
• Measure up to 10 A, 20 A for up to 30 seconds
• Built in thermometer lets you carry one less tool (TC probe included)
• Frequency to 200 kHz and % duty cycle
• Resistance, continuity and diode test
• 10,000 µF capacitance range for components and motor caps
• Min/Max-Average recording with Min/Max Alert to capture variations automatically
• Peak capture to record transients as fast as 250 µs
• Relative mode to remove test lead interference from low ohms measurements
• Auto and manual ranging for maximum flexibility
• Touch Hold to capture stable readings avoiding noisy signals
• Large display digits and two-level bright white backlight for increased visibility
• Analog bargraph for fast changing or unstable signals
• Input Alert provides audible warning against wrong use of input jacks
• Improved selectable sleep mode for long battery life
• Access door for fast battery changes without breaking the calibration seal
• "Classic" design with new removable holster with built in test lead and probe storage
• Lifetime warranty
