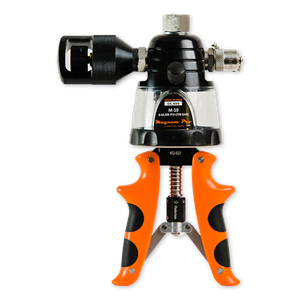

The M-10 utilizes a fully adjustable stroke control to allow for quick priming, easy pumping, and fast pressure generation up to 10,000 psi (700 bar). The ergonomically engineered handles provide extra comfort, while the patented triple filtration system ensures pump operation in spite of dirty conditions. The shatterproof reservoir and stainless steel construction guarantee leak free operation. The pump has over-sized check valves to provide smooth controlled operation.
Specifications:
• 0 - 10,000 PSI (700 Bar)
• Compatible with most hydraulic fluids, oils and water
• Connections (2 ports) 1/4" NPT/BSP
• Weight - 3 lbs
• Made in the USA
Features:
• Contoured cushion handles
• Patented protective cage around vent knob
• Priming feature
• Patented triple filtration (prevents pump failure caused by dirt)
• A non-oil based lubricant is used on all moving parts
• Built in pressure relief valve (prevents over pressurizing)
• Shatter proof reservoir
• Oversized check valves for smooth controlled operation
• 2 year "quibble free" warranty (includes dropping)
Models:
M-10
M-10KT: Includes Pump, a black padded canvas case embroidered with orange thread, 3ft high pressure hose, fittings, 3 filters, test point, adaptor, and fluid bottle.*
M-10WIN: Includes everything in the M-10KT plus Winchester Engineering Model 1 Auto Ranging Digital Gauge™ w/ N.I.S.T. certification and versatile hook.*
M-10WIN-FIT: Includes everything in the M-10WIN plus FasTest universal quick connect kit and coupler for Swagelok tube fittings.*
M-10RK: Rebuild Kit for M-10 (includes: Bonded Washers, a Dowel Pin, a Main Spring, Nylon Washers, Check Valve Springs, O-Rings, Filters, a Washer Sealing, high Pressure Seals, a Thrust Washer, a Spring Selector, a Stainless Steel Ball, Non-petroleum lubricant).
*Note: Kits, hoses, and fittings can be customized upon request.
