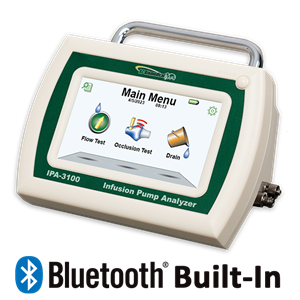

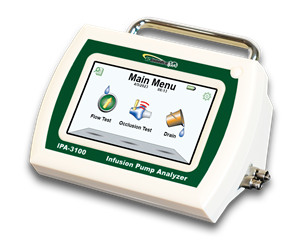

The IPA-3100 is the most compact, feature dense single channel analyzer on the market. It is a high accuracy, easy to use system that incorporates full touch screen control with an intuitive interface. Our patented design uses a dual syringe stepper motor driven system that provides continuous monitoring of the fluid flow without the need to stop and perform intermittent drains like older technologies do. This provides a more realistic flow path for the Infusion Device under test and therefore more accurate readings.
The IPA-3100 has configurable test parameters which allows for specific test routines specified by various manufacturers. Tests can be stored manually or automatically up to 250 different records. These test records can be downloaded to
a computer to then create reports that can be printed.
The IPA-3100 is Bluetooth capable to allow for wireless testing and control. With the use of myBC Mobile or BC Flow, multiple test configurations can be stored for quick testing. Records of each test can be created and then saved for later viewing and analysis. Reports can also be generated from test records for in-depth analysis and/or traceability.
Features:
- Small Footprint
- Integrated Stylus
- Easy to Use
- Intuitive Interface
- High Accuracy
- 4.3” Color Touch Screen
- Smooth Dual Syringe System – Eliminates Drain Cycle Inconsistencies
- Whisper Quiet Operation
- Automatic Start
- Built-in Data Collection (250 Records with Detailed Asset Information)
- PDF Reports available through BC Flow (PC Software)
- Industrial Grade SS Pressure Sensor
- 0.1 mL/Hr to 1000 mL/Hr
- Micro USB Port
- PC Compatible
- Configurable Pressure Unit (PSI, mmHg,mBar, kPa)
- Bluetooth Compatible with myBC Mobile App (Android/IOS)
These accessories are included with the IPA-3100:
BC20-21115 Universal Power Adapter
BC20-40619 Tubing Kit
BC20-41377 Micro USB Cable
