• Certifier Plus Full Kit 4080-F w/ O2kit, Lung Sim,Call for Intl pricing

click on thumbnail to zoom
Other products by TSI
Model/Series: Model 4080-F Certifier Plus
BC Part #: 4080-F
Base Price: $7,035.00
Price: $7,035.00
Optional Lung Simulators
Low Flow:
No options available for 'Oxygen:' at this time.
Lung Simulator:
No options available for 'Lung Simulator:' at this time.

Description  more details

Certifier Plus Flow Analyzer Test System

The Certifier™ Plus Test System 4080-F is made up of a Certifier™ Plus High-Flow Module Kit 4081, Certifier™ Plus Interface Module Kit 4089, and an Oxygen Sensor Kit 4073.

This multi-function pneumatic test system can measure 28 different test parameters and graph data in real-time. Pressure and temperature compensated bi-directional flow sensors deliver high accuracy gas flow measurements with a fast rate of response and industry-leading, low-pressure drop. Users can measure using STP, ATP, BTPS, BTPD, or user-defined gas conditions and test breath rates up to 1500 bpm.

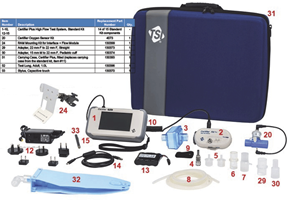

The Certifier™ System 4080-F comes with a full kit of accessories that includes an inlet filter, airway pressure fitting, (5) adapters, silicone tubing, flow module cable, power supply with plug set, rechargeable Li-ion battery (installed), USB computer cable, protective cover, 1L test lung, RAM® mounting kit (interface + flow module), capacitive touch stylus, and fitted deluxe carrying case.

4080-F Test Parameters

    • Flow Rate, Peak Flow, and Minimum Flow

    • Inhaled and Exhaled Tidal Volumes, Minute Volume

    • Low Pressure (Differential)

    • Peak, PEEP, and Minimum Pressures

    • Mean Airway Pressure

    • High Pressure, Barometric Pressure, Plateau Pressure

    • Static Compliance

    • Inspiratory and Expiratory Times

      • Inspiratory Pause Time, Inspiratory Rise Time

    • I:E Ratio, I:E Ratio Including Pause Time

    • Respiratory Rate

    • Gas Temperature

  • Oxygen Concentration

Features and Benefits
    • Large, high resolution color display and real-time graphing for easy data viewing

  • Simple to use with touchscreen operation and automatic breath triggering

  • Create user configurations to enable faster test setups

  • Li-ion rechargeable batteries provide up to 8 hours of continuous operation

  • Data storage using SD Flash card and internal memory

  • Reporting made easier with screen captures, data acquisition, and easy USB export

  • Multiple mounting options saves benchtop space and optimizes your test setups

  • Dual flow module capability for flow module self-checks and simultaneous high and low flow operation



Product Manual
