Model/Series: Model 4090 Certifier Pro
BC Part #: 4090
Base Price: $8,300.00
Price: $8,300.00
Lung Simulator:



Quantity:


Description  more details

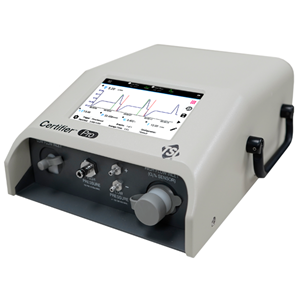

The Certifier ProFlow Analyzer is a benchtop test system that combines high and low flow, pressure, temperature, and oxygen concentration measurements in an all-in-one flow analyzer. The Certifier Pro precisely measures high and low flows with an accuracy of 1.75% of reading throughout the entire flow range.

The touchscreen display is mounted at an angle for easy operation and data viewing. The instrument can be operated on battery power, and users can power down flow channels when not in use to extend battery operation.

Includes

  • Certifier Pro Flow Analyzer (Model 4090)
  • High Flow Inlet Filter, 22mm x 22mm M/F, HEPA
  • Low Flow Inlet Filter, 1/4 inch, HEPA, plus tubing
  • Adapter, high pressure port
  • Adapter, 22 mm x 6 mm (to connect Low Flow Filter to high flow channel using 130373 F/F Adapter)
  • Adapter 15 mm ID x 22 mm OD
  • Adapter 22 mm F to 22 mm F, Straight
  • Adapter, 15 mm M to 22 mm F, Pediatric cuff
  • Airway pressure fitting with screen
  • Pressure tubing, silicone, 1/8-inch ID x 1/4-inch OD x 48 in.
  • Power supply 100/240 VAC to +12 VDC 2.11 mm plug includes plug set with NA, UK, EU, CN, SAA connectors
  • Oxygen sensor cell (installed)
  • Battery, 4 cell Lithium-Ion 7.2 V 6.4 AHr (installed)
  • Hanging Clip (to hang the instrument from ventilator rail)

Datasheet




Product Manual
