Model/Series: ESU-2000A
BC Part #: ESU-2000A
Base Price: $3,694.00
Price: $3,694.00
Optional Items:
Included Items:
  • ESU-2000A Accessory Kit - BC20-00121
    NIST Traceable Calibration Certificate
    User Manual
Optional Service Manual
Quantity:


Description  more details

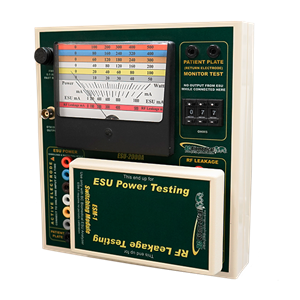

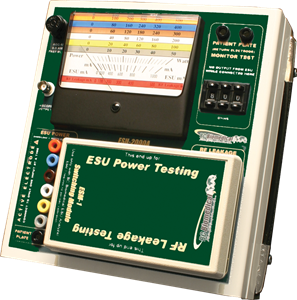

The model ESU-2000A is a precision Electrosurgery Unit Analyzer. It tests the RF power output of electrosurgery units. The power reading is taken from a large 4 ½ inch analog display. It offers six resistive loads for RF power testing from 50 to 500 ohms, along with a 200 ohm load for RF leakage current testing. The patient return electrode resistance simulation is adjustable in one ohm increments from 0 to 999 ohms.


 Large 4 ½ inch analog display
 +/- 5% of full scale accuracy
• Return contact monitor test
• RF leakage test
• Portable
• Oscilloscope isolated output
• 0-10 MHZ bandwidth
• Accessory kit included
• High implact plastic enclosure
