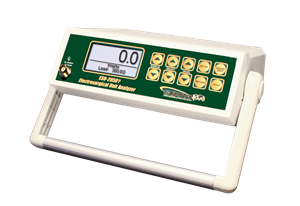

ESU-2050P - ESU Analyzer - High Accuracy - Pulse Meas - External Loads

ESU-2050P - ESU Analyzer - High Accuracy - Pulse Meas - External Loads
Other products by BC Biomedical
Model/Series: ESU-2050P
BC Part #: ESU-2050P
Base Price: $7,319.00
Price: $7,319.00
Power Cord:
Current Transformer (CT Coil): (Required for use)
Optional Equipment:
Resistor Set Kits: (Kits include Adapters & Cal) See Accessories for more
Included Items:
  • ESU-2050/P Accessory Kit - BC20-00126
    Power Supply - Universal 100-240V - BC20-21104
    CT Cable (BNC) - BC20-00232
    Comm Cable - USB - BC20-41352
    Comm Cable - RS232 - BC20-41341
    Soft Case - BC20-30108
    NIST Traceable Cal Cert
    User Manual
Optional Service Manual
Quantity:


Description  more details

The BC Biomedical ESU-2050P adds a Pulse Mode to the ESU-2050.


The ESU-2050 ESU Analyzer is the first instrument of its kind. Designed through extensive collaboration with several of the world's leading electrosurgery generator manufacturers (including the worldwide market leader), the ESU-2050 is a highly accurate calibration-quality instrument intended for use by OEM factory technicians and field service engineers. Customers who desire to test their ESU generators in the exact same way the medical device manufacturers do can also use it. It is one of the only ESU Analyzer's with a 1% reading level of accuracy.


The calibration quality analyzer uses external precision non-inductive test loads and wide band current transformer. The standard model is compatible with all legacy generators with continuous output waveforms, and with the latest technology generators such as the Covidien Force Triad©, Ligasure Blood Vessel Dealing generator, etc. The standard model is NOT compatible with generators that produce pulsed output waveforms.


This device requires a Pearson Coil and External Resistors (not included).


The ESU-2050 requires the following items that are not included with the test equipment purchase:

• A BC20-00230 Pearson CT 4100 1:1 OR a BC20-00231 Pearson CT 411 0.1:1 (most commonly used) is needed. You will also need to purchase one or more Precision Resistors depending on the ESU platform you are testing.
• A CQM-2000 is helpful if you do not have another means of testing CQM/REM/ARM.

Product Features:

• True RMS readings using DFA® Technology
• 1% measurement accuracy
• Uses external current transformer & loads
• mV, mV Peak, mA, crest factor & wattage displays
• Waveform capture, storage, display & download
• Graphical display with bright white backlight
• Price includes: Universal Power Supply, Soft Carrying Case, RS-232 & USB Communication Cables, BNC to BNC Cable (3-foot) for Current
• Transformer connection, PC utility software
ItemBC Part #Product NamePriceAction
CQM/REM/ARM - Test Module - (for use with ESU-2050/P) CQM-2000 CQM/REM/ARM - Test Module - (for use with ESU-2050/P) $418.00 + Add to Cart
Pearson 411 Current Transformer - 0.1:1 Ratio - (Most Commonly Used) Pearson 411 Pearson 411 Current Transformer - 0.1:1 Ratio - (Most Commonly Used) $1,089.00 + Add to Cart
Pearson 4100 Current Transformer - 1:1 Ratio Pearson 4100 Pearson 4100 Current Transformer - 1:1 Ratio $1,089.00 + Add to Cart
Force2 Calibration Set BC20-00252 Force2 Calibration Set $1,820.00 More Info
Force2 Performance Check Set BC20-00251 Force2 Performance Check Set $506.00 More Info
ForceFX Calibration Set BC20-00254 ForceFX Calibration Set $2,272.00 More Info
ForceFX Performance Check Set BC20-00253 ForceFX Performance Check Set $1,009.00 More Info
Force Triad Calibration Set BC20-00256 Force Triad Calibration Set $506.00 More Info
Force Triad Performance Check Set BC20-00255 Force Triad Performance Check Set $1,262.00 More Info
Valleylab - Complete Set of Resistors BC20-00258 Valleylab - Complete Set of Resistors $3,335.00 More Info
Set for PM/Cal Valleylab FT-10 PM/Cal BC20-00259 Set for PM/Cal Valleylab FT-10 PM/Cal $1,767.00 More Info
Power Resistor (External) - 1 Ohm, 50W, 1% BC20-00214 Power Resistor (External) - 1 Ohm, 50W, 1% $53.00 More Info
Power Resistor (External) - 5 Ohm, 250W, 1% BC20-00200 Power Resistor (External) - 5 Ohm, 250W, 1% $252.00 More Info
Power Resistor (External) - 10 Ohm, 50W, 1% BC20-00220 Power Resistor (External) - 10 Ohm, 50W, 1% $53.00 More Info
Power Resistor (External) - 10 Ohm, 250W, 1% BC20-00201 Power Resistor (External) - 10 Ohm, 250W, 1% $252.00 More Info
Power Resistor (External) - 20 Ohm, 250W, 1% BC20-00202 Power Resistor (External) - 20 Ohm, 250W, 1% $252.00 More Info
Power Resistor (External) - 50 Ohm, 250W, 1% BC20-00204 Power Resistor (External) - 50 Ohm, 250W, 1% $252.00 More Info
Power Resistor (External) - 100 Ohm, 250W, 1% BC20-00205 Power Resistor (External) - 100 Ohm, 250W, 1% $252.00 More Info
Power Resistor (External) - 200 Ohm, 250W, 1% BC20-00206 Power Resistor (External) - 200 Ohm, 250W, 1% $252.00 More Info
Power Resistor (External) - 300 Ohm, 250W, 1% BC20-00207 Power Resistor (External) - 300 Ohm, 250W, 1% $252.00 More Info
Power Resistor (External) - 500 Ohm, 250W, 1% BC20-00208 Power Resistor (External) - 500 Ohm, 250W, 1% $252.00 More Info
Power Resistor (External) - 800 Ohm, 250W, 1% BC20-00218 Power Resistor (External) - 800 Ohm, 250W, 1% $355.00 More Info
Power Resistor (External) - 1000 Ohm, 250W, 1% BC20-00209 Power Resistor (External) - 1000 Ohm, 250W, 1% $252.00 More Info
Power Resistor (External) - 2000 Ohm, 250W, 1% BC20-00210 Power Resistor (External) - 2000 Ohm, 250W, 1% $252.00 More Info
Power Resistor (External) - 3000 Ohm, 250W, 1% BC20-00211 Power Resistor (External) - 3000 Ohm, 250W, 1% $252.00 More Info
Power Resistor (External) - 4000 Ohm, 250W, 1% BC20-00212 Power Resistor (External) - 4000 Ohm, 250W, 1% $252.00 More Info
Power Resistor (External) - 5000 Ohm, 250W, 1% BC20-00213 Power Resistor (External) - 5000 Ohm, 250W, 1% $252.00 More Info
Banana Jack Adapter (set of 2) BC20-00240 Banana Jack Adapter (set of 2) $36.00 + Add to Cart
CT Cable (BNC) - 3' (ESU 2050/P & 2350) BC20-00232 CT Cable (BNC) - 3' (ESU 2050/P & 2350) $81.00 + Add to Cart
Comm Cable - RS-232 - DB-9 (M) to DB-9 (F) (DA/ESU/SA) BC20-41341 Comm Cable - RS-232 - DB-9 (M) to DB-9 (F) (DA/ESU/SA) $200.00 + Add to Cart
Comm Cable - USB (A) M to USB (B) M (ESU/PFC/AA-8000 Series) BC20-41352 Comm Cable - USB (A) M to USB (B) M (ESU/PFC/AA-8000 Series) $45.00 + Add to Cart
Carrying Case - (Soft) - BC Biomedical Large BC20-30108 Carrying Case - (Soft) - BC Biomedical Large $153.00 + Add to Cart
Decade Box - Resistance ( Ohm) - Basic RS-200 Decade Box - Resistance ( Ohm) - Basic $188.00 More Info
Decade Box - Resistance ( Ohm) - Precision RS-201 Decade Box - Resistance ( Ohm) - Precision $345.00 More Info
Decade Box - Resistance ( Ohm) - Wide Range RS-200W Decade Box - Resistance ( Ohm) - Wide Range $345.00 More Info
Decade Box - Resistance ( Ohm) - Wide Range Precision RS-201W Decade Box - Resistance ( Ohm) - Wide Range Precision $585.00 More Info
ESU-2050/P - Accessory kit - (Replacement) BC20-00126 ESU-2050/P - Accessory kit - (Replacement) $658.00 + Add to Cart
Footswitch Port Adapter for ESU Generators BC20-03050 Footswitch Port Adapter for ESU Generators $156.00 + Add to Cart
Power Supply - ESU-2050/P - (w/o Power Cord) - (Replacement) BC20-21104 Power Supply - ESU-2050/P - (w/o Power Cord) - (Replacement) $104.00 + Add to Cart
Power Cord - North America - (ESU Series)(C13) BC20-20500 Power Cord - North America - (ESU Series)(C13) $91.00 + Add to Cart
Power Cord - Japan - (ESU Series)(C13) BC20-20501 Power Cord - Japan - (ESU Series)(C13) $91.00 + Add to Cart
Power Cord - UK/Ireland - (ESU Series)(C13) BC20-20502 Power Cord - UK/Ireland - (ESU Series)(C13) $91.00 + Add to Cart
Power Cord - Schuko/Cont Europe w/Ground - (ESU Series)(C13) BC20-20503 Power Cord - Schuko/Cont Europe w/Ground - (ESU Series)(C13) $91.00 + Add to Cart
Power Cord - Argentina - (ESU Series)(C13) BC20-20505 Power Cord - Argentina - (ESU Series)(C13) $91.00 + Add to Cart
Power Cord - South Africa - (ESU Series)(C13) BC20-20509 Power Cord - South Africa - (ESU Series)(C13) $91.00 + Add to Cart
Power Cord - Switzerland - (ESU Series)(C13) BC20-20510 Power Cord - Switzerland - (ESU Series)(C13) $91.00 + Add to Cart
Power Cord - Italy - (ESU Series)(C13) BC20-20512 Power Cord - Italy - (ESU Series)(C13) $91.00 + Add to Cart
Power Cord - Australia - (ESU Series)(C13) BC20-20516 Power Cord - Australia - (ESU Series)(C13) $91.00 + Add to Cart
Power Cord - China - (ESU Series)(C13) BC20-20517 Power Cord - China - (ESU Series)(C13) $91.00 + Add to Cart
Power Cord - Danish - (ESU Series)(C13) BC20-20519 Power Cord - Danish - (ESU Series)(C13) $91.00 + Add to Cart
Cable Kit - ESU-2400/2400H/2350/2050/2050P - FT-10 Calibration BC20-00141 Cable Kit - ESU-2400/2400H/2350/2050/2050P - FT-10 Calibration $317.00 + Add to Cart
DB9 RS-232 Bluetooth Adapter (DA-2006/P only) BC20-41401 DB9 RS-232 Bluetooth Adapter (DA-2006/P only) $110.00 + Add to Cart
