Model/Series: ESU-2350
BC Part #: ESU-2350
Base Price: $7,161.00
Price: $7,161.00
Optional Accessories


Description  more details

Included with purchase:

BC20-00142 ESU-2350 Accessory Kit (Test Leads)

BC20-21107 Universal Power Supply

BC20-20521 Power Adapter with International plugs
NIST Traceable Calibration Certificate
User Manual

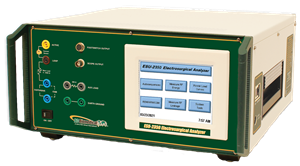

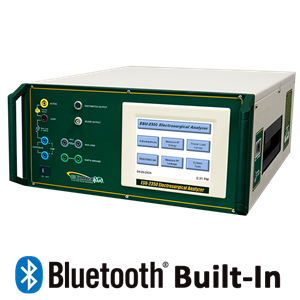

The ESU-2350 Electrosurgical Unit Analyzer is a high-accuracy, true RMS RF measurement system with Bluetooth technology built inside. It is designed to be used in the calibration and routine performance verification of Electrosurgical Generators. It offers a higher degree of accuracy than previously attainable with conventional Electrosurgical Unit Analyzer designs.

The ESU-2350 provides an internal load bank with a range of 0 to 5500 Ω in 5 Ω increments. It is microprocessor based and utilizes a combination of unique hardware and software to provide accurate and reliable test results, even from “noisy” Electrosurgical Generator wave-forms such as “Spray”. The DFA 2™ Technology utilized in the ESU-2350 allows the system to aggressively digitize the RF waveforms produced by Electrosurgical Generators, analyze each individual digital data point, and provide highly accurate measurement results.


 > Industry Standard RF Current Measurement

 > Displays Up to 9 Different Measurement Parameters  with User Selectable and Definable Screens

 > Internal Precision Test Loads From 0 Ω to 5500 Ω in 5 Ω Increments

 > Power Load Curves with Multiple Power Settings Per Load Setting

 > User-Definable Testing Sequences

 > Print test Reports to PDF format

 > Automatic or Manual Activation of ESU Generator During Power Load Curve Tests

 > 100% Compatible with Covidien/ Valleylab ForceTriad™, FT10™ and Ligasure™ Generators, and All Legacy Generators by Other
>  REM/ARM/CQM Testing Via 500 Ω Adjustable Load in 1 Ω Increments

 > RF Leakage Current Measurement
