Other products by Extech
Model/Series: EX655
BC Part #: Extech-EX655
Base Price: $290.00
Price: $290.00
Included Items
  • NIST Traceable Calibration Certificate
Quantity:


Description  more details

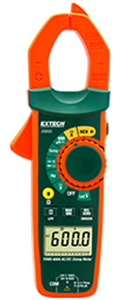

The EX655 is an AC/DC Clamp Meter with Non-Contact Voltage Detector, Low Impedance, Low Pass Filter and Temperature.

The EX655 is a 600A True RMS AC/DC Clamp meter. This clamp meter also measures AC/DC voltage, resistence, capacitance, frequency, temperature, continuity/diode test and has an NCV detector. The EX655 has a 1.18" jaw size which accomodates conductors up to 350 MCM. This meter also features a 6000 count backlit LCD display, data hold, min/max, relative function,low pass filter, inrush mode, DC zero function, LCD trending bargraph, auto power off and a convenient LED worklight. Complete with test leads general purpose bead wire Temperature probe, and 3 AAA batteries.

Features:
• True RMS for accurate AC measurements
• 1.18" (30mm) jaw size accomodates conductors up to 350MCM
• 6000 count backlit LCD display with bargraph
• Low Impedance (LoZ) prevents false reading caused by ghost voltages
• Low Pass Filter (LPF) for accurate measurements of variable frequency drive signals
• Built-in non-contact voltage detector (NCV) with LED indicator
• Built-in LED flashlight for working in dimly-lit areas
• Functions include: NCV, AC/DC Voltage, AC/DC Current, AC/DC micro Current, Resistance, Capacitance, Frequency, Type-K Temperature, Diode Test, Continuity
• DC Zero mode, Data Hold, Min/Max, Relative function, Auto Power Off
• Inrush mode captures current surges during motor startup
• Complete with test leads, 3 AAA batteries and general purpose bead wire temperature probe


Data Sheet

Product Manual
